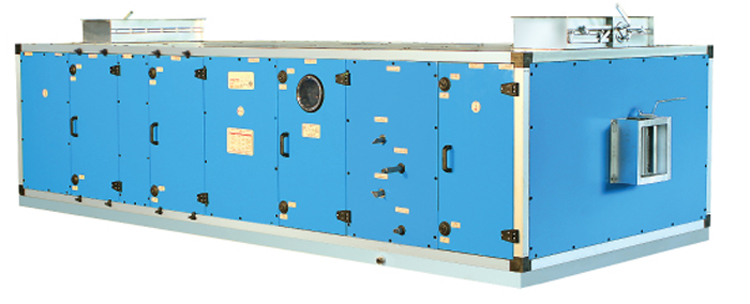

double skin air handling units

CAPACITY RANGE

1000 CFM to 40000 CFM

APPLICATION

   Comfort Air Conditioning
   - For Schools, Studio, Airports,
   Laboratories, Multiplexes, Offices,
   Institutional Buildings and Hotels.

OPTION AVAILABLE

   Weatherproof    Light, Limit switch, View glass.
   Filter sections for EU-5, EU-7, in Rigid / Bag construction.
   Humidification, Pre / Re Heat Package.
   Heat recovery Wheel / Heat Pipe.
   Mixing Box with Fresh / Return Air Dampers
   Single / Double Tier Construction.

CONSTRUCTION

The unit is manufactured in HEAVY duty extruded Aluminum profile with & without THERMAL BREAK & internal coving section.
The unit panels are filled with 25 OR 50mm thick pressure injected polyurethane foam, having 38/40 kg /m3 density.
Various options such as pre-coated galvanized sheets, plain galvanized sheets, aluminum & SS 304 & SS 316 sheets in various thicknesses are available for inner & outer skin of double skin panels.
High efficiency, AMCA certified, imported DWDI & PLUG type Blowers are used.
Forward curved blowers for normal applications and backward curved for high resistance application.
Drain pan made of SS 304 with dual slope to facilitate immediate discharge of condensate.
Base frame is made of galvanized steel with die cast aluminum joints having lifting holes.
Access doors are provided with hinges & locks made of self extinguishing nylon for perfect air tightness.

FEATURES

The Unit is manufactured as per the customer's requirement.
