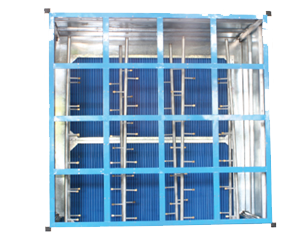

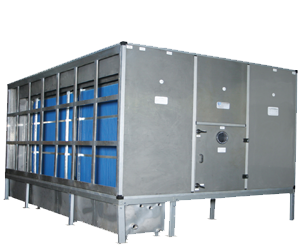

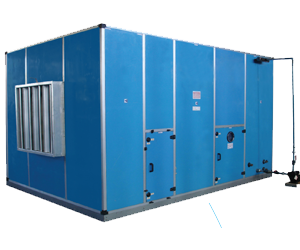

air cooling unit

CAPACITY RANGE

   1000 CFM to 250000 CFM

APPLICATION

   Air cooled units in POY, Texttile, Fume Exhaust Systems, Control room ventilation & pressurization systems.

CONSTRUCTION

  • The unit is manufactured in HEAVY duty extruded Aluminum profile. Also available in MS fabricated section in HDG or powder coated finish.
  • The unit panels are filled with 25 OR 50mm thick pressure injected polyurethane foam, having 38/40 kg /m3 density.
  • Various options such as pre-coated galvanized sheets, plain galvanized sheets, aluminum & SS 304 & SS 316 sheets in various thicknesses are available for inner & outer skin of double skin panels.
  • High efficiency, AMCA certified, imported DWDI & PLUG type Blowers are used.
  • Forward curved blowers for normal applications and backward curved for high resistance application.
  • Drain pan made of SS 304 with dual slope to facilitate immediate discharge of condensate.
  • Base frame is made of galvanized steel with die cast aluminum joints having lifting holes.
  • Access doors are provided with hinges & locks made of self extinguishing nylon for perfect air tightness.

FEATURES

     The unit is manufactures as per the customer's requirements.
